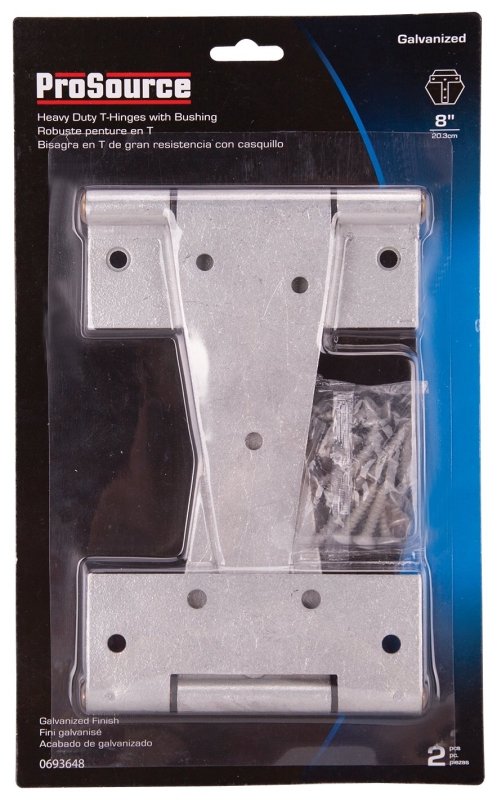

ProSource HTH-G08-C2PS T-Hinge, Galvanized Steel, Galvanized Brass Pin, Fixed Pin, 180 deg Range of Motion

ProSource

ProSource HTH-G08-C2PS T-Hinge, Galvanized Steel, Galvanized Brass Pin, Fixed Pin, 180 deg Range of Motion

$34.99$34.99
ProSource HTH-G08-C2PS T-Hinge, Galvanized Steel, Galvanized Brass Pin, Fixed Pin, 180 deg Range of Motion
  • Dimensions: 8 in
  • Door Leaf Thickness: 2.8 mm
  • Door Leaf Width: 5-1/2 in
  • Finish: Galvanized Brass Pin
  • Holes per Leaf: 8
  • Model #: HTH-G08-C2PS
  • UPC #: 045734643826
  • SKU: 0693648

Your shopping list will be used for pickup in-store

Product Details

This Extra Heavy-Duty Hinge is designed for applications with narrow frame or post, such as tool chests, barn doors, shed doors, and gates. Can be used for left or right hand installations.

Key Features

  • Galvanized brass pin

Item Specifications

Dimensions8 in
Door Leaf Thickness2.8 mm
Door Leaf Width5-1/2 in
FinishGalvanized Brass Pin
Holes per Leaf8
IncludesScrew
Knuckle Diameter0.58 in
Knuckle Length5.72 in
MaterialGalvanized Steel
Mounting TypeScrew
Number of Mounting Holes16
Pin MaterialBrass Pin
Pin TypeFixed
Projection Size8 in
Range of Motion180 deg
Suitable forDoor
Weight Capacity120 (Pair) lb
MORE DETAILS:
  • Application: For left-hand or right-hand applications
