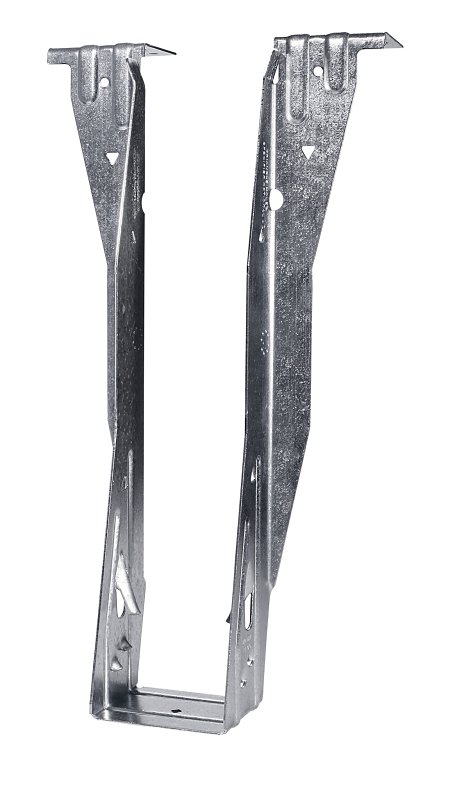

Simpson Strong-Tie ITS ITS2.37/9.5 Top Flange Hanger, 9-7/16 in H, 2 in D, 2-7/16 in W, 2-5/16 x 9-1/2 in, Steel

Simpson Strong-Tie

Simpson Strong-Tie ITS ITS2.37/9.5 Top Flange Hanger, 9-7/16 in H, 2 in D, 2-7/16 in W, 2-5/16 x 9-1/2 in, Steel

$5.69$5.69
Simpson Strong-Tie ITS ITS2.37/9.5 Top Flange Hanger, 9-7/16 in H, 2 in D, 2-7/16 in W, 2-5/16 x 9-1/2 in, Steel
  • Depth: 2 in
  • Fastener Type: Nail
  • Finish: Galvanized/Zinc
  • Material: Steel
  • Size: 2-5/16 x 9-1/2 in
  • Model #: ITS2.37/9.5
  • UPC #: 707392742906
  • SKU: 7495112

Your shopping list will be used for pickup in-store

Product Details

The innovative ITS is designed to support 90 deg connections of I-joists to headers. This top-flange hanger features the Strong-Grip™ seat and Funnel Flange™ design allowing standard joist installation without the use of joist nails, resulting in the lowest installed cost.

Key Features

  • The Strong-Grip™ seat firmly secures I-joists with flange thickness from 1-1/8 to 1-1/2 in
  • No joist nailing required for standard I-joist installation without web stiffeners
  • Made from 18 ga steel
  • Galvanized (G90) for extra corrosion resistance
  • Cost-effective hanger that installs quickly with a small number of nails
  • Features additional triangle holes for additional uplift
  • Features optional fastening with PAT for steel applications/header

Item Specifications

Depth2 in
Fastener TypeNail
FinishGalvanized/Zinc
MaterialSteel
Size2-5/16 x 9-1/2 in
Skew Angle5 deg
Width2-7/16
